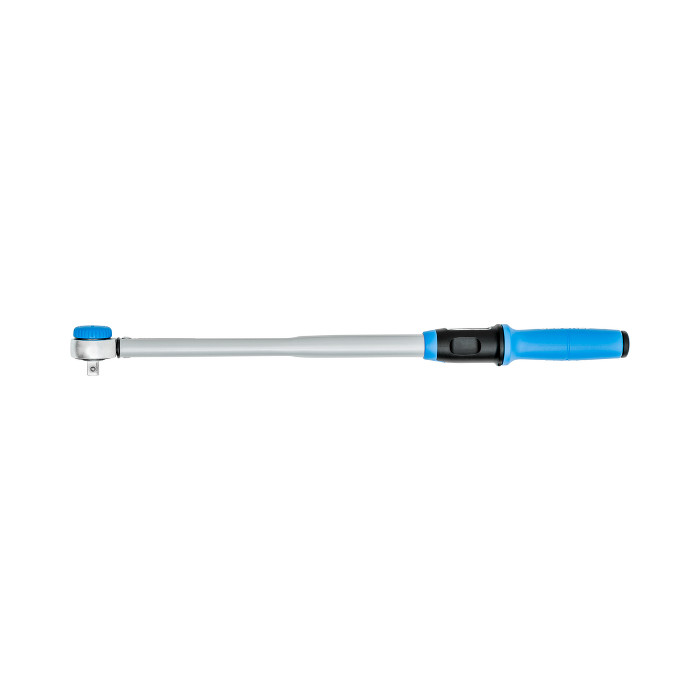

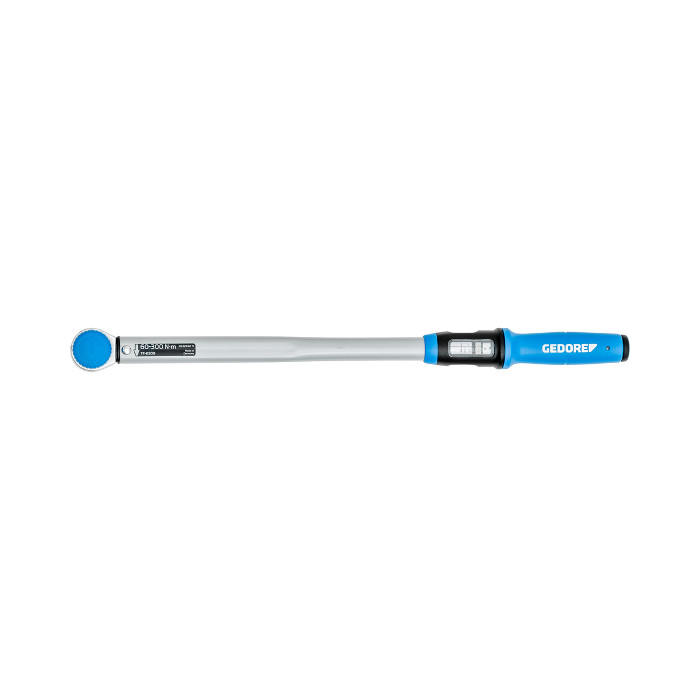

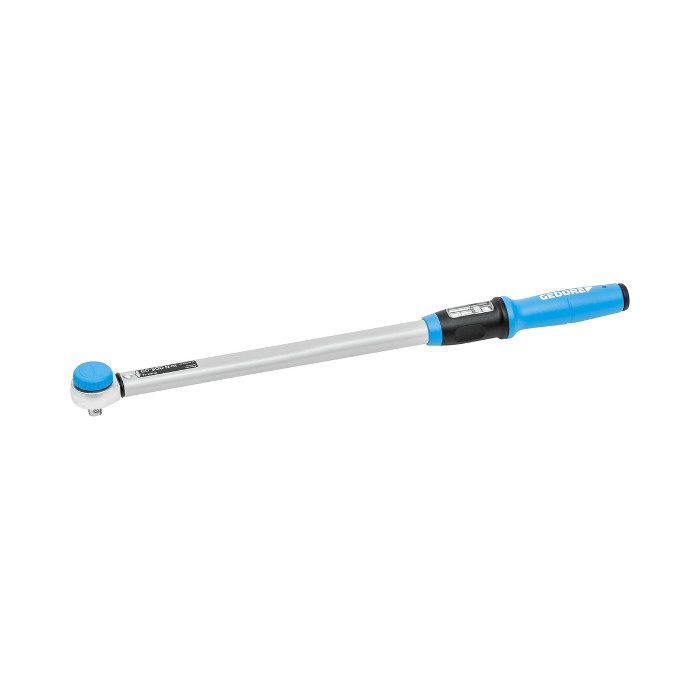

GEDORE 3278395 Torque Wrench TF-K300, 60 - 300 Nm

• Square drive acc. to DIN EN ISO 6789-2:2017 Typ II Klasse A
• Release accuracy tolerance ± 3% of scale value (in direction of actuation)
• For controlled right- and left-hand tightening (square socket for direction change)
• Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades
• Number of teeth: 48
• Return angle: 7.5°
• 1/2 inch mushroom head socket square with ball lock
• Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
• New ergonomic handle, shaped according to the natural grip position of the hand
• clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
• Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
• With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
• Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
• Scale line positioned directly above the scale prevents reading errors (parallax errors)
• Unit labeling integrated in the scale frame and also protected by viewing windows
• The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
• incl. roll away protection, prevents rolling away when the tool is put down
• Made in Germany

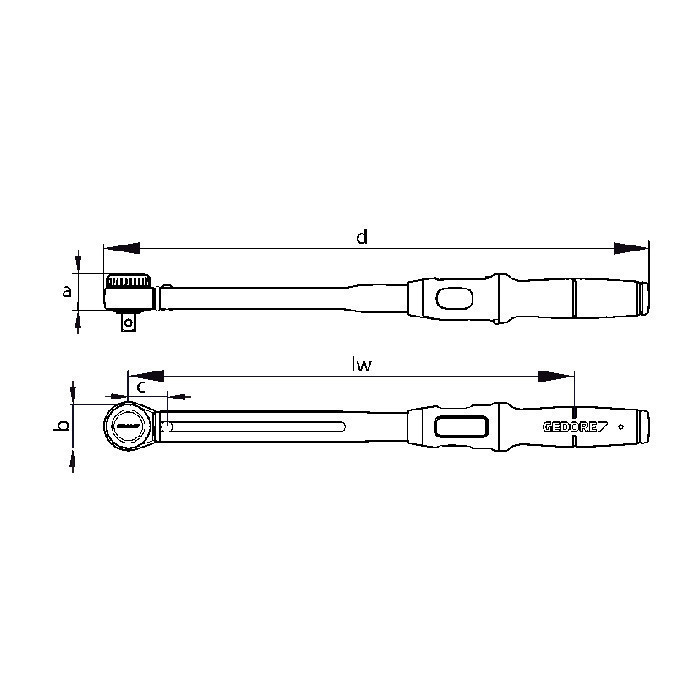

Technical details

No	3278395
Article No	TF-K300
Square Drive mm/inch	12.5 - 1/2
l mm	585.00
Torque min./max. Nm/lbf·ft	60 - 300/45.0 - 220.0
Scale division Nm/lbf·ft	10/10
EAN	4010886966693
