GEDORE Insert Reversible Ratchet SUKSE9, 10 - 19 mm

from USD 83,78

add. 19 % VAT excl. shipping costs

Available, ready to ship. Additional items can be ordered Datum!!

Note: International shipment from Germany. Import duties, MPF, and UPS/DHL brokerage fees apply upon delivery.

  • Insert Ratchet SUKSE9:



Please select your desired variation to put the product into cart.

MPN: GED-SUKSE9


0.0 of 5 stars


  • Drive connector rectangular: 9x12 mm rectangle mount
  • metric size
  • Flat ring ratchet with UD-profile, fine-toothed
  • with pin retention
  • Made in Germany
  •   more details

    0.00 Review(s)

    There are no reviews for this product

    reviews Write a review

    product description

    GEDORE Insert Reversible Ratchet SUKSE9, 10 - 19 mm

    • Drive connector rectangular: 9x12 mm rectangle mount
    • metric size
    • Flat ring ratchet with UD-profile, fine-toothed
    • With lowered change-over lever for right/left rotation
    • For loosening or fast tightening with high torque transfer
    • Forged
    • with pin retention
    • Surface: Non-glare look due to matt chrome-plating, locking insert and pawl manganese-phosphated
    • Material: GEDORE Vanadium-Steel 31CrV3
    • To operate with a 9x12 mm torque wrench or rectangular handle 9x12 mm
    • Made in Germany

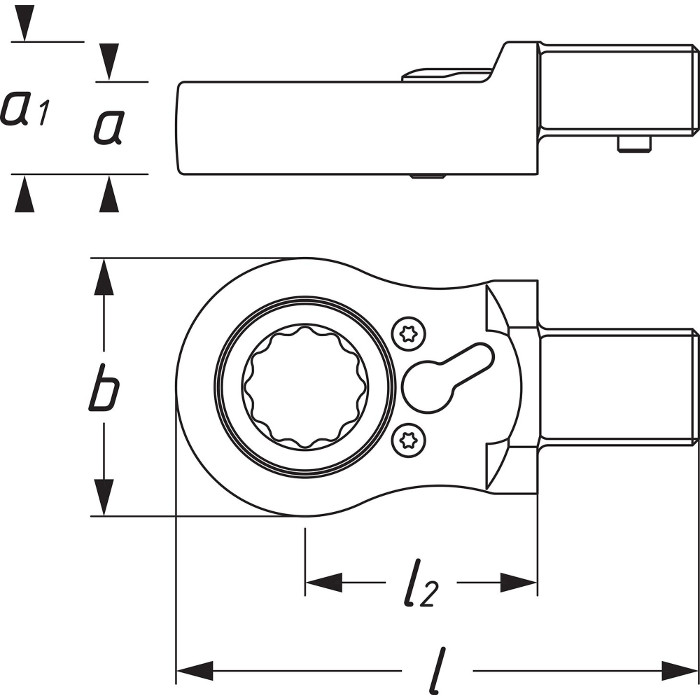

    Technical details

    GEDORE Logo No
    Article No
    Size mm
    L mm
    Width of head b mm
    Head height a mm
    Head height a1 mm
    Depth gauge mm
    EAN
    4002805
    2827735
    SUKSE9 10
    10
    66.2
    22.0
    7.7
    15.8
    40.0
    +933138
    2827743
    SUKSE9 13
    13
    66.2
    22.0
    7.7
    15.8
    40.0
    +933121
    2827751
    SUKSE9 17
    17
    77.4
    33.6
    10.6
    15.8
    45.0
    +933145
    2827778
    SUKSE9 19
    19
    85.7
    36.3
    11.7
    15.8
    52.0
    +933152

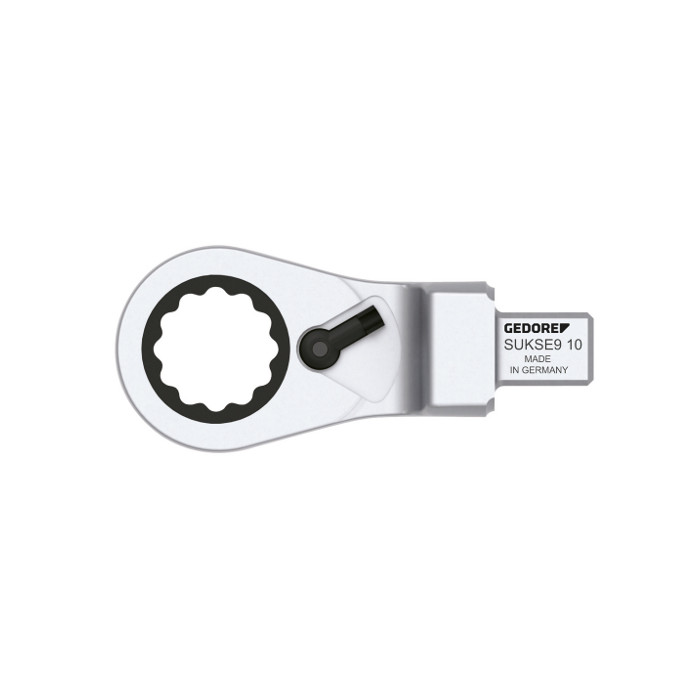

    Please note: The image shows a representation only and is provided by GEDORE
