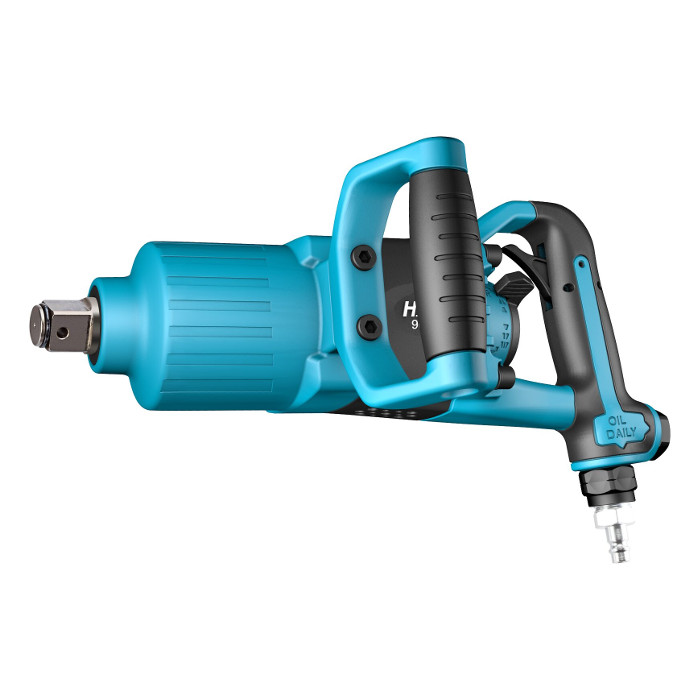

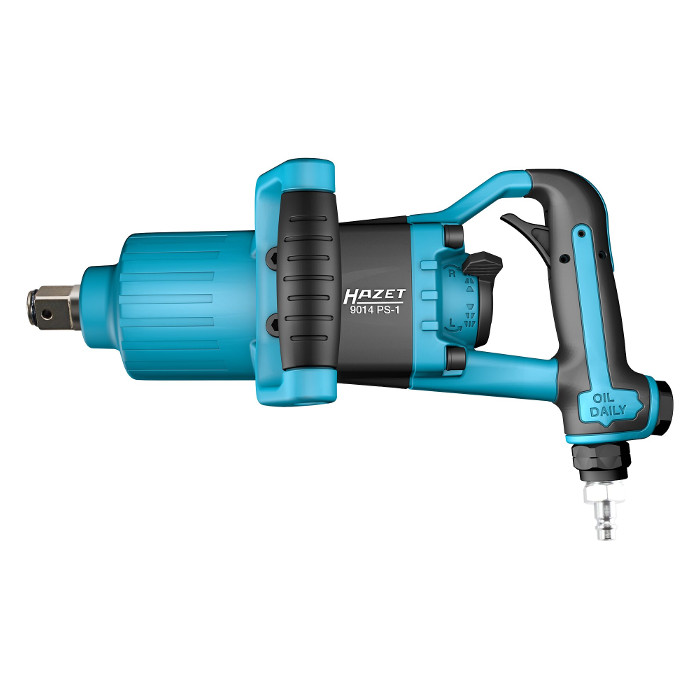

HAZET 9014PS-1 Impact Wrench 25.0mm - 1in

• Square drive 25.0 mm - 1in as per DIN 3120 - C 25.0, ISO 1174
• Maximum loosening torque: 3400 Nm
• Output designed with hole for pinning as well as a nut-driver holder ring
• Optimised by two-sided operation for left and right handed users
• One-hand reversing switch
• Extremely powerful tool
• Optimised feel
• Air connection possible on the handle at the bottom and rear
• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling
• Cold insulated handle
• Direct hammer striking mechanism ensures less vibration and higher output
• Air inlet thread: 20.67 mm (1/2in)
• Coupler plug: nominal size 10 (included)
• Recommended torque: 2400 Nm
• Hose diameter (recommended): 19 mm
• Working pressure (bar): 6.3
• Sound power level: 114.5 dB(A) Lp W
• Vibration acceleration: 15.94 m/s2
• Screw size M: 36
• Forward and reverse: three-stage (forward and reverse)

Technical details

No	9014PS-1

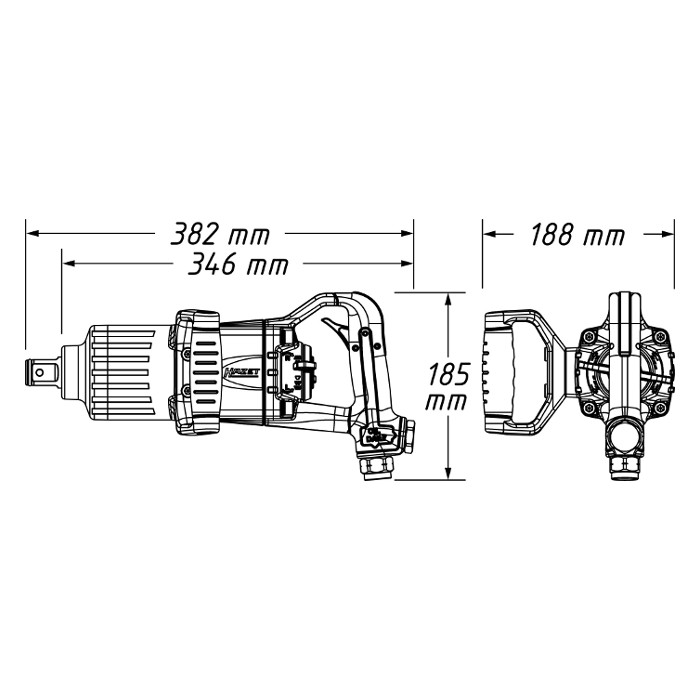

l mm	381.9
Nm	2400
Nm	3400
l/min.	283.0
upm	5500
db(A)LpA	103.5
EAN	4000896222490
