HAZET Cordless impact wrench 9212-3LB/3

Application:
Work independently

• High efficiency thanks to brushless motor

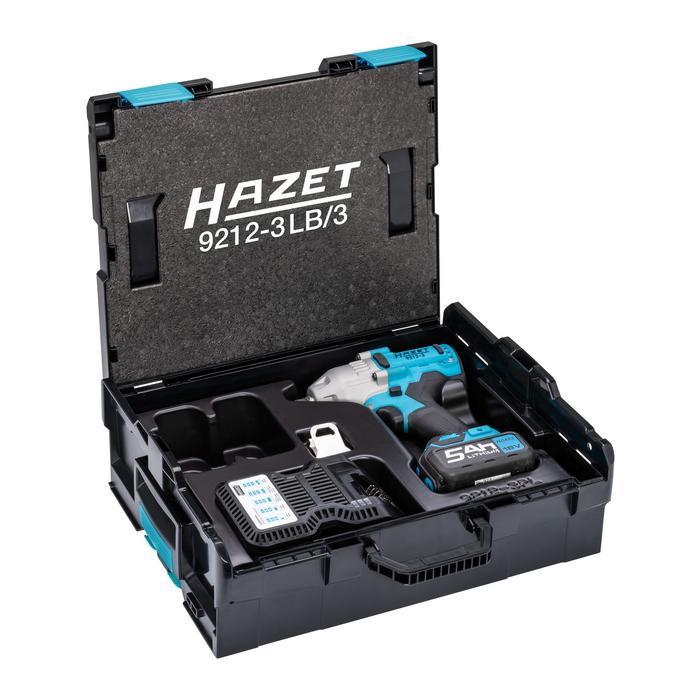

• 3-piece set ∙ in L-Boxx:
  1 cordless impact wrench
  1 quick charger (40 minutes)
  1 Li-ion rechargeable battery 18 V, 5 Ah
• 18 V, 5 Ah
• There are three power stages to choose from for torque acceleration:
  Stage 1 80 Nm at 0 – 600 rpm (0 – 1200 impacts/min)
  Stage 2 300 Nm at 0 – 1400 rpm (0 – 2500 impacts/min)
  Stage 3 500 Nm at 0 – 2000 rpm (0 – 3400 impacts/min)
• Illumination of the work area before the output begins to move
• Li-Ion rechargeable battery with very low self-discharge (only 2%) compared to a standard NiMH rechargeable battery (15 – 25%)
• Amperage without load: 5.5 A
• Replacement battery: 9212-05
• Net weight: 1.86 kg (without rechargeable battery)
• Battery net weight: 0.66 kg (only set 9212-3)
• Battery charger net weight: 0.66 kg (only set 9212-3)
• Case net weight: 4.35 kg (only set 9212-3)
• Dimensions including rechargeable battery: 204 x 64 x 259 mm
• Including belt clip, attachable on both sides
• Brushless DC motor (BLDC)
  • Longer service life, less wear, no need to change the carbon brushes
  • High efficiency and hence less battery consumption
  • More compact motor enables smaller dimensions
• Recommended torque: 500 Nm
• Sound power level: 110.4 db(A) Lp W
• Vibration acceleration: 20.30 m/s2
• Loosening torque (max) determined with screw size M: 16
• Forward and reverse: multi-stage (right/left)
• L-Boxx 190 L-136
• Output: Square, solid 12.5 mm (1/2 inch)
• Dimensions / length: 204 mm x 64 mm x 259 mm
• Net weight: 1.86 kg
• Tightening torque max.: 500 Nm
• Maximum loosening torque: 700 Nm
• Sound pressure level: 99.4 dB(A) Lp A
• Revolutions per minute: 0 – 2000

Do you know – Li-Ion batteries:

• Do not have any memory effect
• Consist of cells with 3.6 V each
• After full charge they have a higher voltage than 3.6 V i.e. 5 cells each 3.6 V = 18 V – but after full charge a peak voltage of up to 20 V is possible
  Attention: For a longer lifetime of the battery please store it charged up to 50 to 80 % only
• Have an energy density which is twice as high as nickel cadmium batteries, for example
• Have a nominal voltage three times higher than a nickel metal hydride battery
• Require multiple complete charging cycles to reach full capacity
• Number of tools: 3
