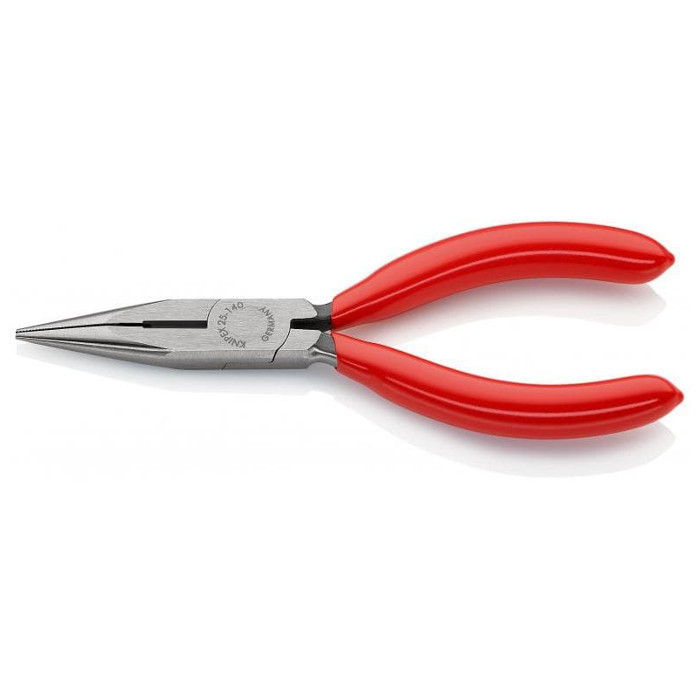

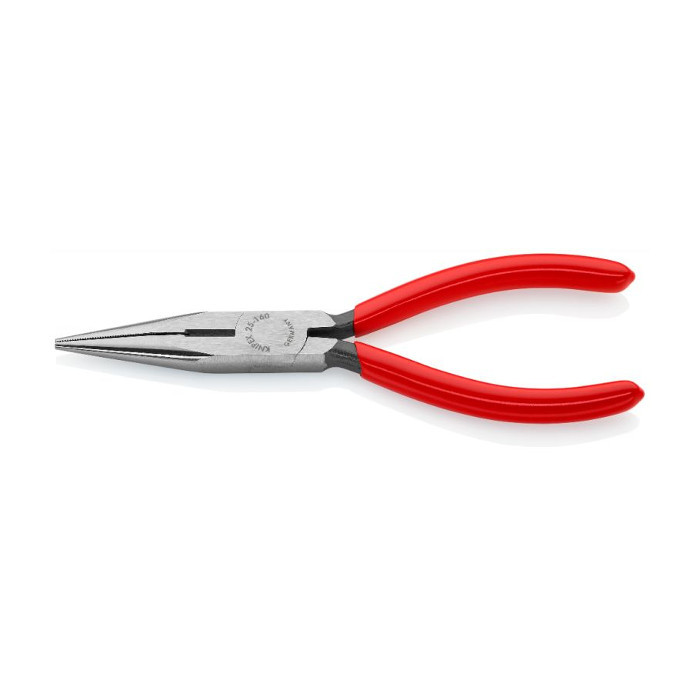

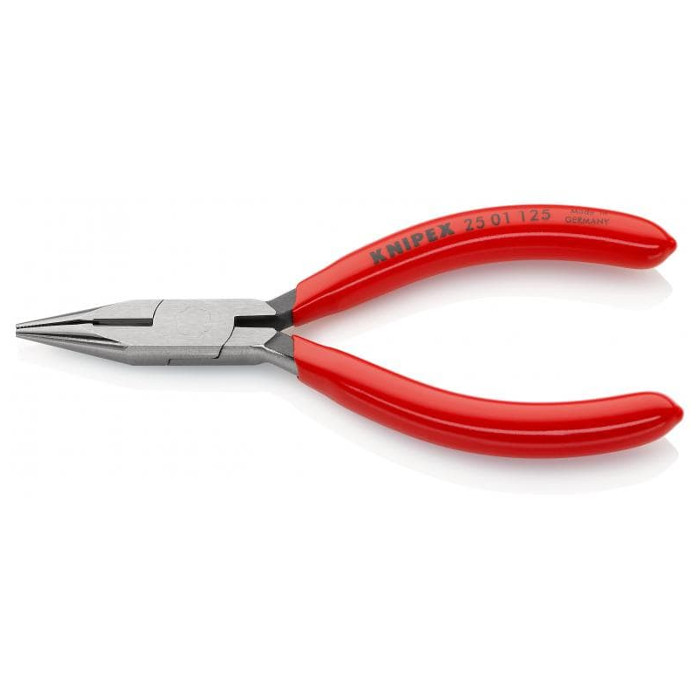

KNIPEX 25 01 Snipe nose side cutting pliers, 125 - 160 mm
from USD 16,87
add. 19 % VAT excl. shipping costs
Available, ready to ship. Additional items can be ordered Datum!!
0 Review(s)
product description
KNIPEX 25 01 Snipe nose side cutting pliers, 125 - 160 mm

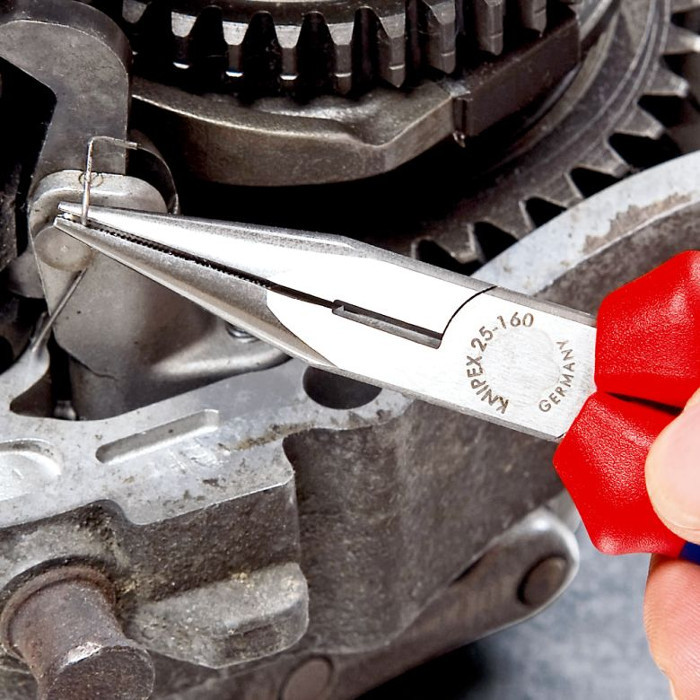

- Suitable for finer gripping and cutting work
- Half-round, long, tapered jaws
- Knurled gripping surfaces
- With cutting edges for soft, medium-hard and hard wire
- Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC
- Material: Vanadium electric steel, forged, multi stage oil-hardened
- Surface: black atramentized, head polished
- Handles: plastic coated
- DIN ISO 5745
- Made in Germany

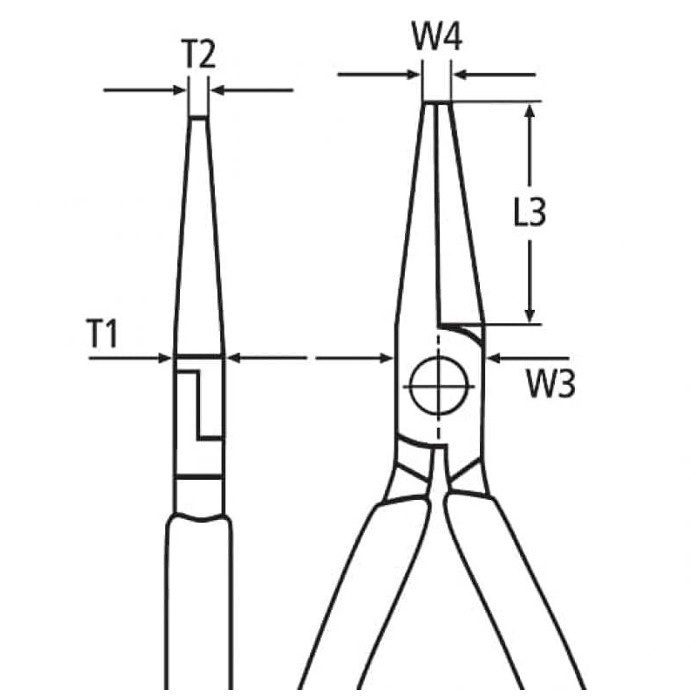

Technical details
No | mm | ø mm | ø mm | T1 mm |
T2 mm |
W3 mm |
W4 mm |
L3 mm |
EAN 4003773 |
25 01 125 | 125.0 | 2.2 | 1.6 | 7.0 | 1.8 | 13.0 | 2.5 | 27.0 | +015932 |
25 01 140 | 140.0 | 2.5 | 1.6 | 8.0 | 2.0 | 15.0 | 2.5 | 42.0 | +033158 |
25 01 140 SB | 140.0 | 2.5 | 1.6 | 8.0 | 2.0 | 15.0 | 2.5 | 42.0 | +010814 |
25 01 160 | 160.0 | 2.5 | 1.6 | 9.0 | 2.5 | 16.5 | 3.0 | 50.0 | +033912 |
25 01 160 SB | 160.0 | 2.5 | 1.6 | 9.0 | 2.5 | 16.5 | 3.0 | 50.0 | +010845 |
