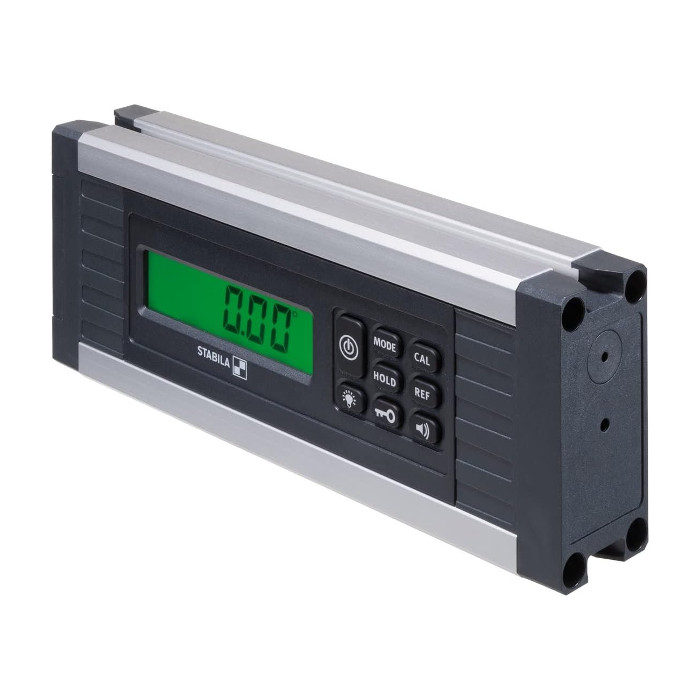

STABILA 19125 Digital Protractor TECH 500 DP

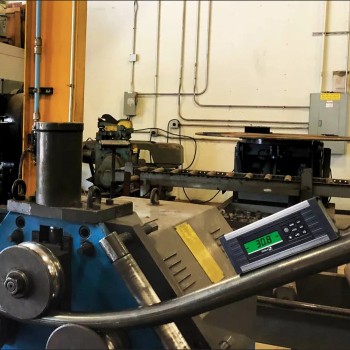

• Application examples: During production: when performing maintenance on and setting machines. For long-term measurements thanks to a range of mounting options. For checking and monitoring processes. In quality assurance: for measuring key values. In special-purpose mechanical engineering: easy alignment of systems during commissioning.
• Digital protractor for measurements from 0° to 360° (4 x 90°)

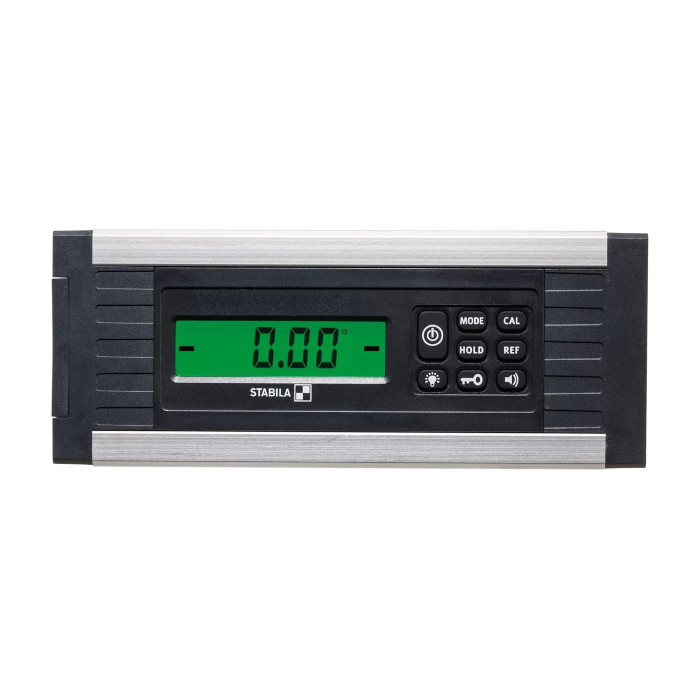

• Digital display with large digits and lighting that can be activated – optimum readability even in poor lighting conditions
• Anodised measuring surfaces – durable and robust

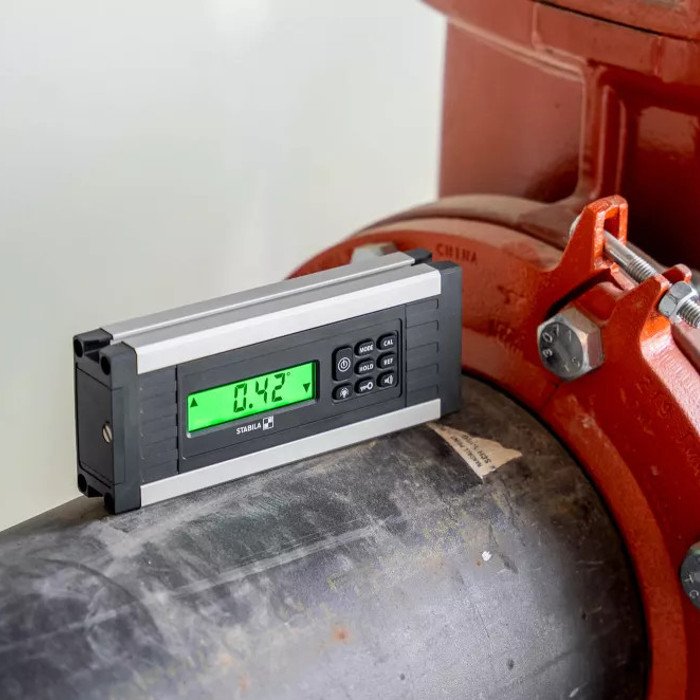

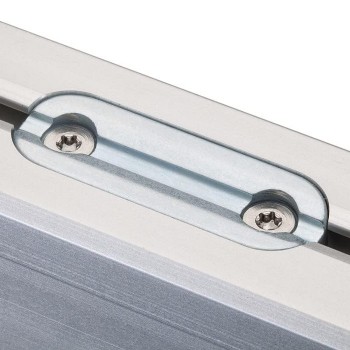

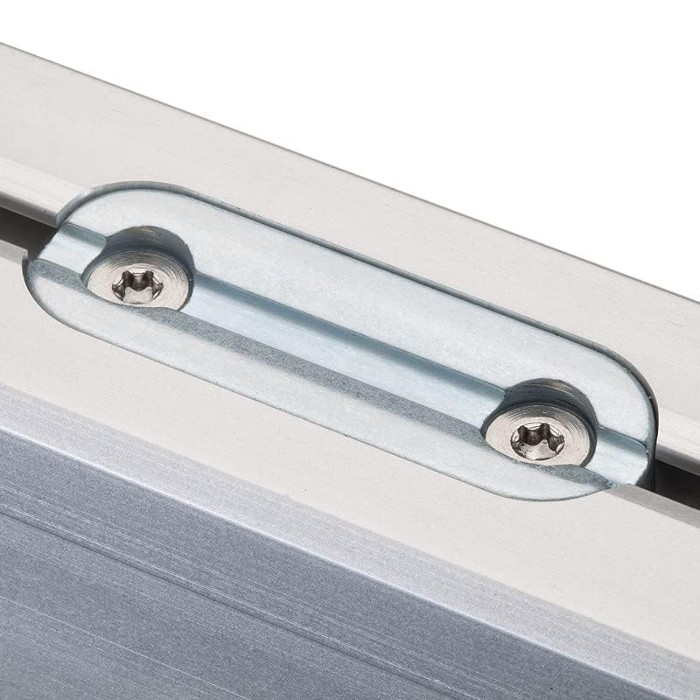

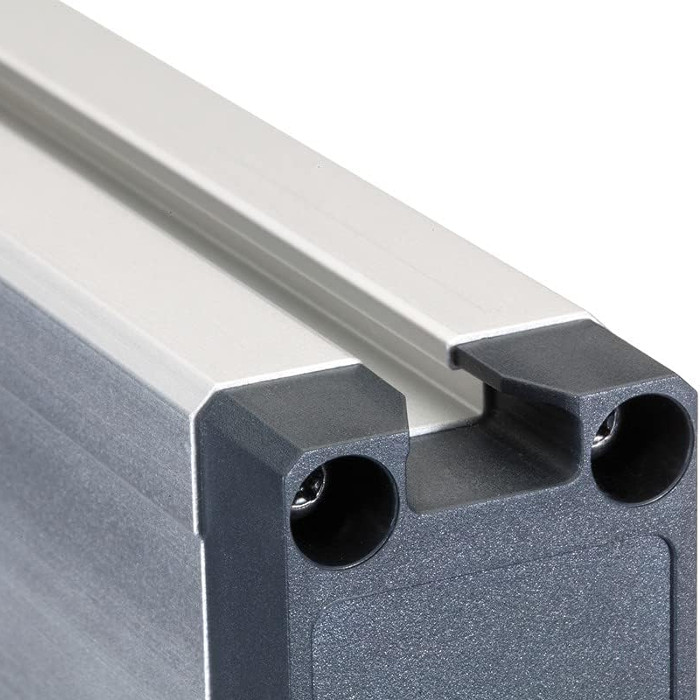

• Range of securing options: T-groove for flexible mounting with groove nuts. V-groove for exact positioning on pipes. Rare-earth magnet for a secure hold on steel beams and pipes
• Optimum protection – waterproof and dustproof in accordance with protection class IP 65
• Superior functions enable use as a hand-held device
• Acoustic guidance with 3 different audible signals for quick alignment
• REF function: fast measurement in relation to a reference angle
• HOLD function: saves the measured value
• Display modes: °, %, mm/m, in/ft – decimal and as fraction
• Option of precision display (0.01°) and rough display (0.1°) modes
• Digital display rotates in reverse position
• Keyboard lock
• Mounting options: T-groove, V-groove, rare-earth magnet
• Battery type: AA
• Operating life: ca. 150 h

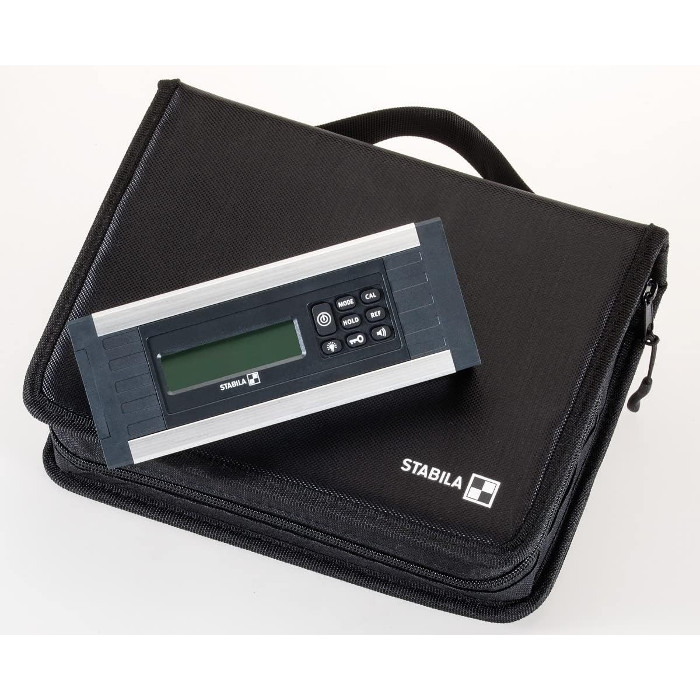

• Includes bag for secure transport

Technical details

No	19125
Accuracy (+/-) at 0° and 90°	0.05°
Accuracy (+/-) at 1° to 89°	0.2°
Number of measuring surfaces	2
Dimension L x W x H mm	175 x 32 x 70
Weight netto kg	0.420
EAN	4005069191252

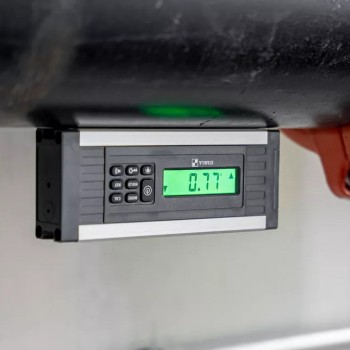

Please note: The image shows a representation only and is provided by STABILA
